Application:: |
General |
Medium Type:: |
Water, steam and oil etc. |
Mounting Type:: |
Direct Mount |
Standard Or Non-Standard:: |
Standard |
Flow way:: |
two way |
Actuation:: |
Manual, Electric, Pneumatic,Automatic |
Sealing Performance:: |
Sealing |
Working Temperature:: |
Normal Temperature And High Temperature |
Pressure Application:: |
Normal Pressure |
Quality Warranty:: |
18 Months |

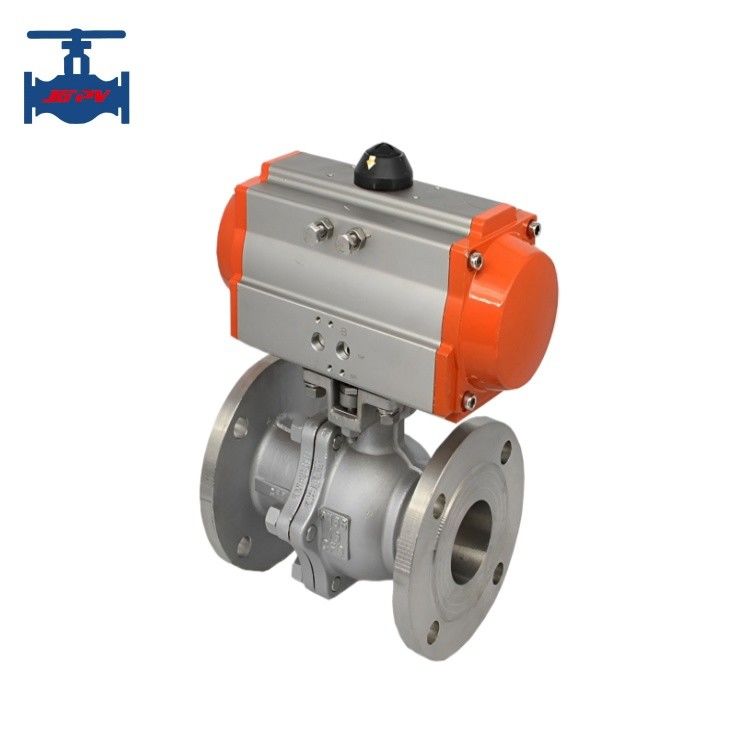

Highlight: Pneumatic flanged ball valve
Product introduction:
A pneumatic ball valve is a device that uses air or other gases to control the opening and closing of a valve. Its function is to
regulate the flow within pipelines, achieved by rotating the valve ball to control the on/off state and flow rate of the pipeline.
As such, pneumatic ball valves are widely used in the pipeline systems of industries such as petroleum, chemical, metallurgy,
and water treatment. Pneumatic ball valves are primarily used to control the flow direction, flow rate, pressure, and
temperature of fluids, including liquids, gases, and solid particles. Their advantages include rapid switching, reliable sealing,
strong flow capacity, long service life, convenient maintenance, and simple structure.
Product technical parameters:
|
Nominal Diameter DN (mm)
|
15~200
|
|
Nominal Pressure PN (MPa)
|
1.6
|
|
Test Pressure (MPa)
|
Strength (water)
|
2.4
|
|
Enclose (Water)
|
1.76
|
|
Main Components
|
Body
|
WCB/CF8/CF8M
|
|
Valve ball
|
Stainless steel/Carbon steel
|
|
Seat
|
PTFE
|
|
Packing
|
Soft graphite
|
|
Shaft
|
2Cr13
|
|
Handle
|
Ductile iron
|
|
Working temperature
|
≤150℃
|
|
Medium suitable
|
Water, oil, steam
|
Product features:
1. Fast switching: Controlled by air source, it can achieve rapid opening and closing, improving operational efficiency.
2. Reliable sealing: The ball valve uses a sealing ring for sealing, with excellent sealing performance to effectively prevent
fluid leakage.
3. Strong flow capacity: The ball valve has a large flow capacity and low resistance. The fluid passes through the valve
with stable flow performance, meeting high-flow requirements.
4. Long service life: Pneumatic ball valves feature a simple structure with few components, offering corrosion resistance,
wear resistance, and a long service life.
5. Easy maintenance: Pneumatic ball valves are detachable and maintainable, facilitating convenient maintenance and
material replacement.
