Anti-Corrosion Eccentric Plug Valve with Flange Type Design for Reliable Sealing Performance

পণ্যের বিবরণ

উৎপত্তি স্থল: চীন

পরিচিতিমুলক নাম: JGPV

পেমেন্ট ও শিপিংয়ের শর্তাবলী

ন্যূনতম চাহিদার পরিমাণ: 1 সেট

প্যাকেজিং বিবরণ: পাতলা পাতলা কাঠ বক্স সুরক্ষা প্যাকিং

ডেলিভারি সময়: 14 দিন

পরিশোধের শর্ত: এল/সি, টি/টি, ওয়েস্টার্ন ইউনিয়ন

যোগানের ক্ষমতা: প্রতি মাসে 500 সেট

সেরা দাম পান
বিশেষভাবে তুলে ধরা:

Anti-Corrosion Eccentric Plug Valve

,

Eccentric Design Plug Valve

,

Flange Type Plug Valve

আবেদন::
সাধারণ
শংসাপত্র::
আইএসও 9001, আইএসও 14001
মাঝারি প্রকার::
জল, বাষ্প এবং তেল ইত্যাদি
সংযোগ::
থ্রেড / ফ্ল্যাঞ্জড / ওয়েল্ডড
স্ট্যান্ডার্ড বা অ-মানক::
স্ট্যান্ডার্ড
প্রবাহের উপায়::
দ্বি উপায়
অভিনয়::
ম্যানুয়াল, বৈদ্যুতিক, বায়ুসংক্রান্ত, স্বয়ংক্রিয়
সিলিং পারফরম্যান্স::
সিলিং
কাজের তাপমাত্রা::
সাধারণ তাপমাত্রা এবং উচ্চ তাপমাত্রা
চাপ অ্যাপ্লিকেশন::
সাধারণ চাপ
মানের ওয়ারেন্টি::
18 মাস
আবেদন::
সাধারণ
শংসাপত্র::
আইএসও 9001, আইএসও 14001
মাঝারি প্রকার::
জল, বাষ্প এবং তেল ইত্যাদি
সংযোগ::
থ্রেড / ফ্ল্যাঞ্জড / ওয়েল্ডড
স্ট্যান্ডার্ড বা অ-মানক::
স্ট্যান্ডার্ড
প্রবাহের উপায়::
দ্বি উপায়
অভিনয়::
ম্যানুয়াল, বৈদ্যুতিক, বায়ুসংক্রান্ত, স্বয়ংক্রিয়
সিলিং পারফরম্যান্স::
সিলিং
কাজের তাপমাত্রা::
সাধারণ তাপমাত্রা এবং উচ্চ তাপমাত্রা
চাপ অ্যাপ্লিকেশন::
সাধারণ চাপ
মানের ওয়ারেন্টি::
18 মাস
Anti-Corrosion Eccentric Plug Valve with Flange Type Design for Reliable Sealing Performance
XF5900B Ball Type Anti-Corrosion Eccentric Plug Valve
Product Overview

The XF5900B ball type anti-corrosion eccentric plug valve combines multiple advantages of domestic and international eccentric plug valves. It features an attractive design, flexible operation, easy maintenance, excellent sealing performance, large flow area, and low flow resistance. The welded Ni-sealed valve seats provide reliable corrosion and wear resistance, making it suitable for harsh water and oil applications.

Technical Specifications
Model No. PN (MPa) Test PS (MPa) Application Working Temperature (℃)
XF5900B-10 10 1.5 Clear water, sewage, oil products ≤80
XF5900B-16 16 2.4 Clear water, sewage, oil products ≤80
Key Features
  • Double eccentric design for low friction operation and zero leakage
  • 90% nickel content, 3mm thick welded valve seat or high-performance resin seat for corrosion resistance
  • V-shaped combination sealing ring, replaceable without removing operating device
  • Sealant filling port design extends valve service life
  • Self-lubricating valve bearing material eliminates need for grease, minimizing shaft wear
  • Hot-sealed rubber molded plug body prevents rubber detachment and erosion corrosion
  • O-ring sealed valve cover-body connection reduces bolt count for easier maintenance
  • Pressure gauge connectors provided for flow measurement and control

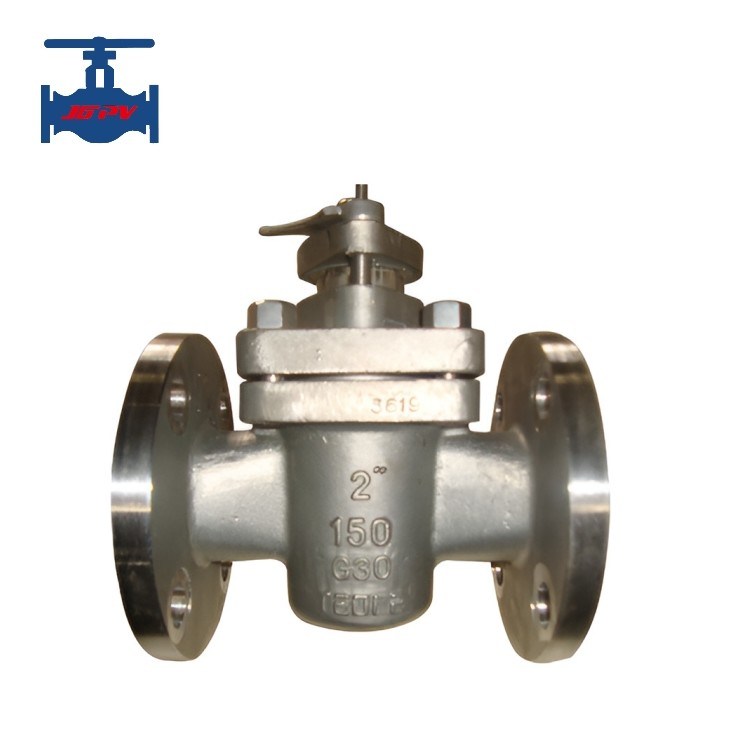

Product Images
Anti-Corrosion Eccentric Plug Valve with Flange Type Design for Reliable Sealing Performance 0 Anti-Corrosion Eccentric Plug Valve with Flange Type Design for Reliable Sealing Performance 1 Anti-Corrosion Eccentric Plug Valve with Flange Type Design for Reliable Sealing Performance 2 Anti-Corrosion Eccentric Plug Valve with Flange Type Design for Reliable Sealing Performance 3 Anti-Corrosion Eccentric Plug Valve with Flange Type Design for Reliable Sealing Performance 4 Anti-Corrosion Eccentric Plug Valve with Flange Type Design for Reliable Sealing Performance 5
